Al's C34 Upgrade Photo's for those who do not like words!
Page #3 of 3

Got any Photo's for Al Watson to post?

Click tiny photo to make big!
[if no picture click for full size]

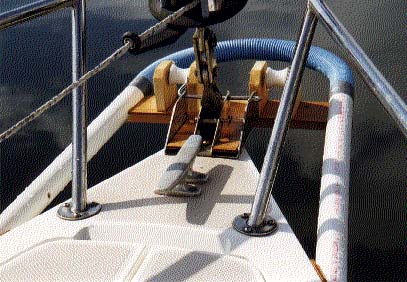

Construct a Proto Type and Fit to Boat.

[if no picture click for full size]

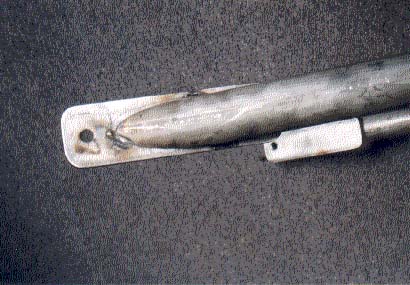

Have weldment Tack welded Only till Fit Tested.

[if no picture click for full size]

Weldment made from Proto Type.

[if no picture click for full size]

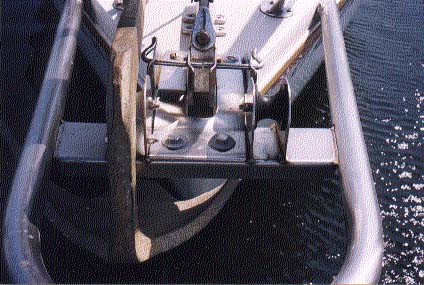

Mounting on Boat, Note Using Existing Bolts.

[if no picture click for full size]

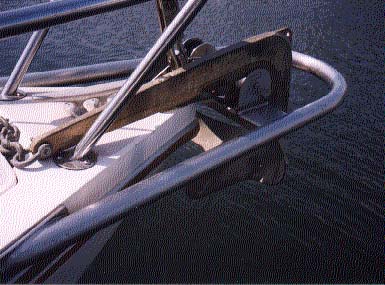

Mounted with Anchor in Place.

[if no picture click for full size]

Front View

[if no picture click for full size]

Side View from Above.

[if no picture click for full size]

Side View from Below.

[if no picture click for full size]

Fish View
